时序 Timing：海韵Seasonic FOCUS GX 1000 ATX3.1

电源序列号：R2603AA1C3501996
模块状态（测试结果）：PASS

Timing：海韵Seasonic FOCUS GX 1000 ATX3.1

Unit: ms - fcpowerup.com
VACPS_ON#+12VDC+5VDC+3.3VDC}OutputsPWR_OK

时序数据表

项目含义实测值参考范围结果
开机时序
T1上电延迟81.29 ms< 200msPASS
T2上升时间10.70 ms0.2-20msPASS
T3PWR_OK 延迟133.10 ms100-250msPASS
80% 负载掉电保持时间
T5+T6-80%-12V80%负载 12V 保持时间29.70 ms> 17msPASS
T5+T6-80%-5V80%负载 5V 保持时间31.90 ms> 17msPASS
T5-80%-PG80%负载 PG 信号时间24.50 ms> 16msPASS
100% 负载掉电保持时间
T5+T6-100%-12V满载 12V 保持时间24.30 ms> 12msPASS
T5+T6-100%-5V满载 5V 保持时间26.10 ms> 12msPASS
T5-100%-PG满载 PG 信号时间19.30 ms> 11msPASS

示波器截图

开机时序

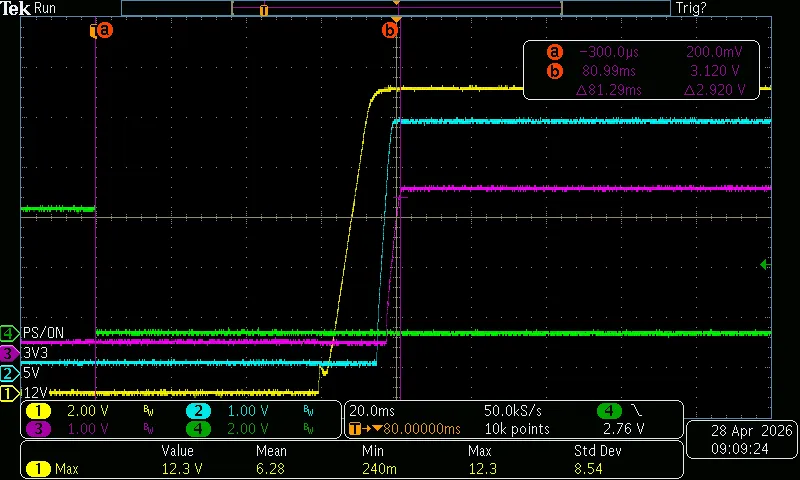

T1 (Power-On Time)
81.29 ms | SPEC < 200ms

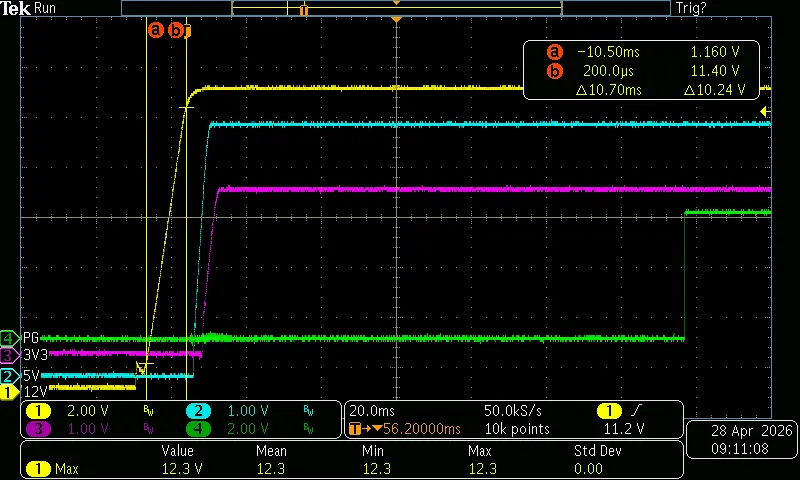

T2 (Rise Time)
10.70 ms | SPEC 0.2-20ms

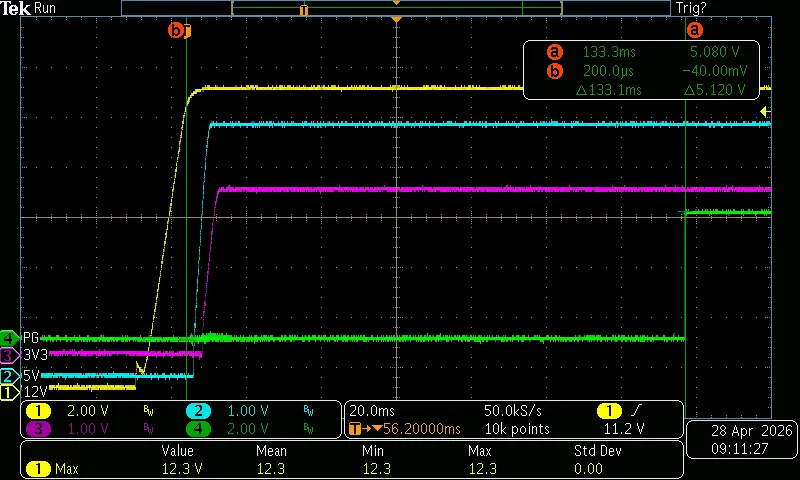

T3 (PWR_OK Delay)
133.10 ms | SPEC 100-250ms

80% 负载掉电保持时间

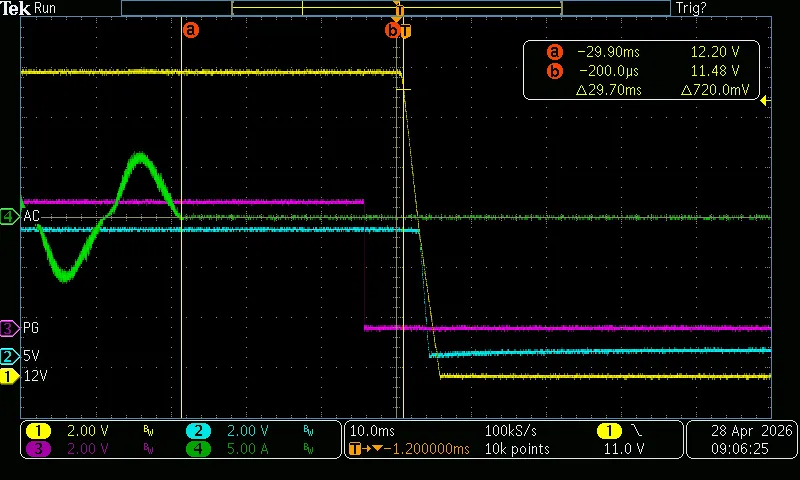

T5+T6 (Voltage Hold-up 80% 12V)
29.70 ms | SPEC > 17ms

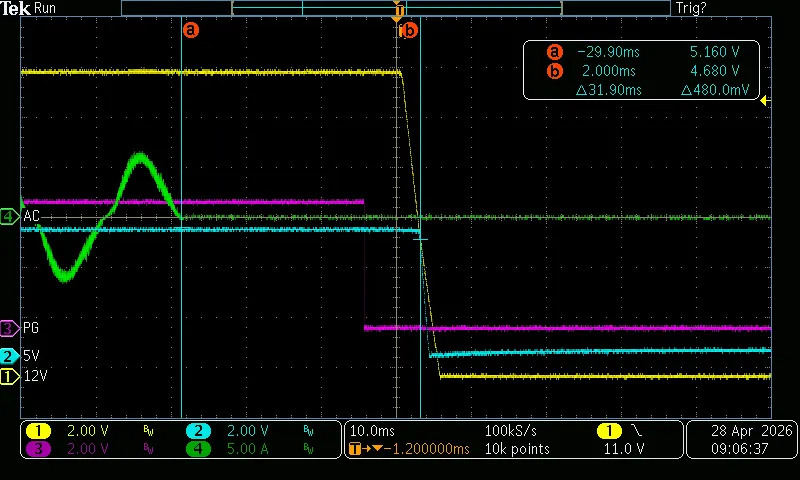

T5+T6 (Voltage Hold-up 80% 5V)
31.90 ms | SPEC > 17ms

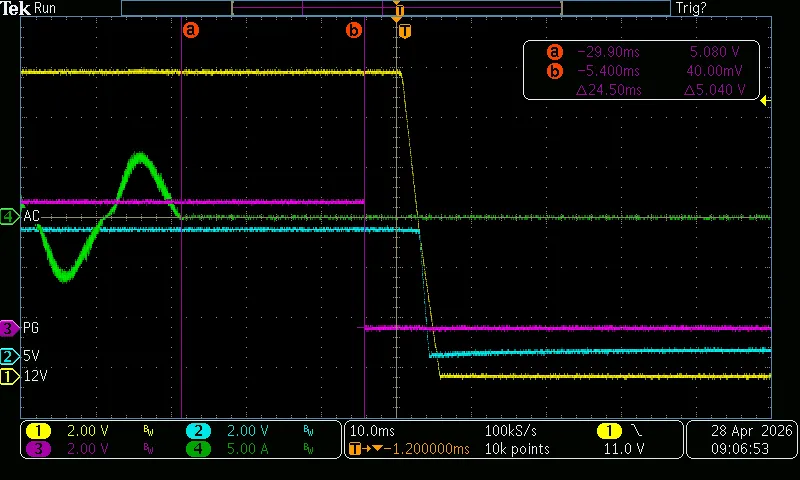

T5 (PWR_OK Hold-up 80% PG)
24.50 ms | SPEC > 16ms

100% 负载掉电保持时间

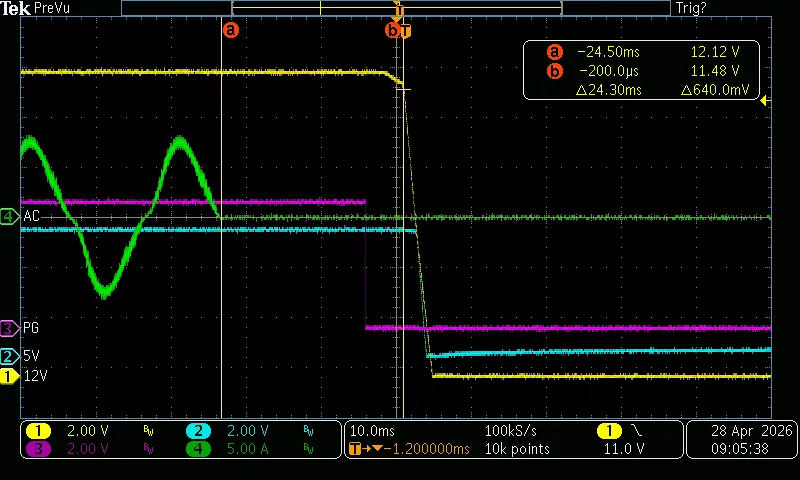

T5+T6 (Voltage Hold-up 100% 12V)
24.30 ms | SPEC > 12ms
T5+T6 (Voltage Hold-up 100% 5V)
26.10 ms | SPEC > 12ms

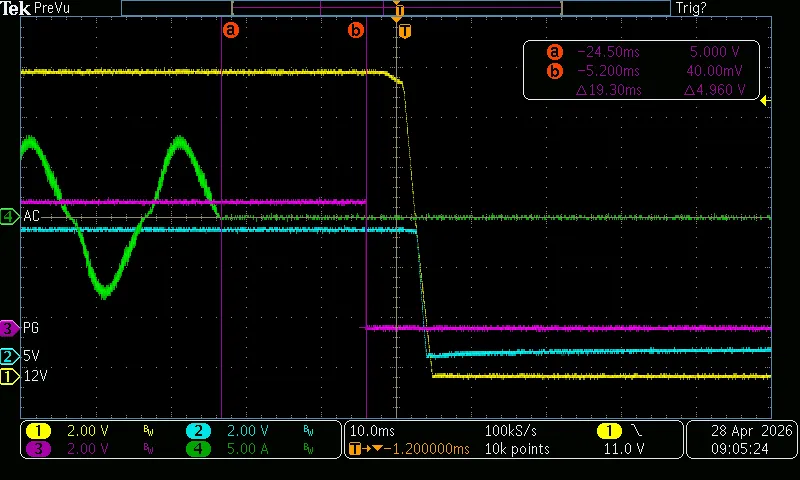

T5 (PWR_OK Hold-up 100% PG)
19.30 ms | SPEC > 11ms
