时序 Timing：威刚ADATA XPG FUSION 1600 TITANIUM FUSION1600T BKCEU

电源序列号：4031D0796534
模块状态（测试结果）：PASS

Timing：威刚ADATA XPG FUSION 1600 TITANIUM FUSION1600T BKCEU

Unit: ms - fcpowerup.com
VACPS_ON#+12VDC+5VDC+3.3VDC}OutputsPWR_OK

时序数据表

项目含义实测值参考范围结果
开机时序
T1上电延迟130.30 ms< 200msPASS
T2上升时间9.30 ms0.2-20msPASS
T3PWR_OK 延迟125.10 ms100-250msPASS
80% 负载掉电保持时间
T5+T6-80%-12V80%负载 12V 保持时间26.20 ms> 17msPASS
T5+T6-80%-5V80%负载 5V 保持时间27.30 ms> 17msPASS
T5-80%-PG80%负载 PG 信号时间23.70 ms> 16msPASS
100% 负载掉电保持时间
T5+T6-100%-12V满载 12V 保持时间21.10 ms> 12msPASS
T5+T6-100%-5V满载 5V 保持时间22.20 ms> 12msPASS
T5-100%-PG满载 PG 信号时间18.70 ms> 11msPASS

示波器截图

开机时序

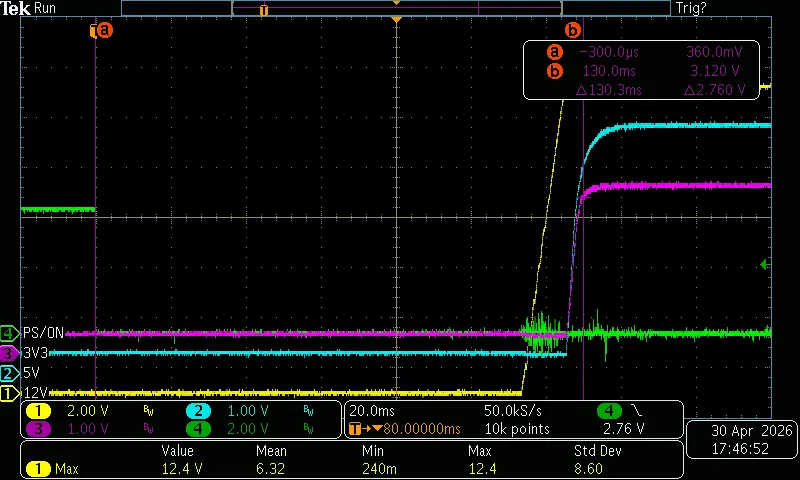

T1 (Power-On Time)
130.30 ms | SPEC < 200ms

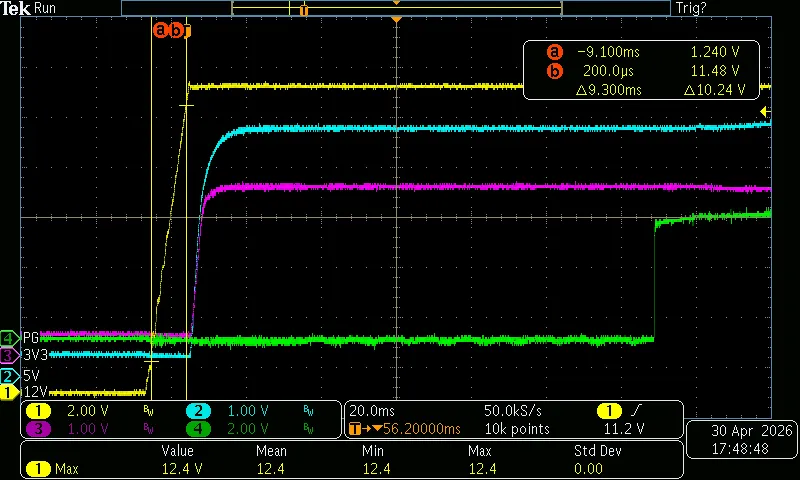

T2 (Rise Time)
9.30 ms | SPEC 0.2-20ms

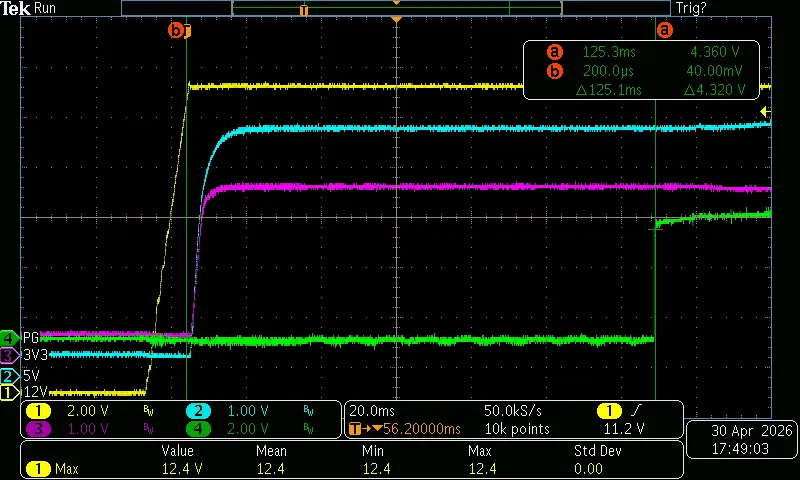

T3 (PWR_OK Delay)
125.10 ms | SPEC 100-250ms

80% 负载掉电保持时间

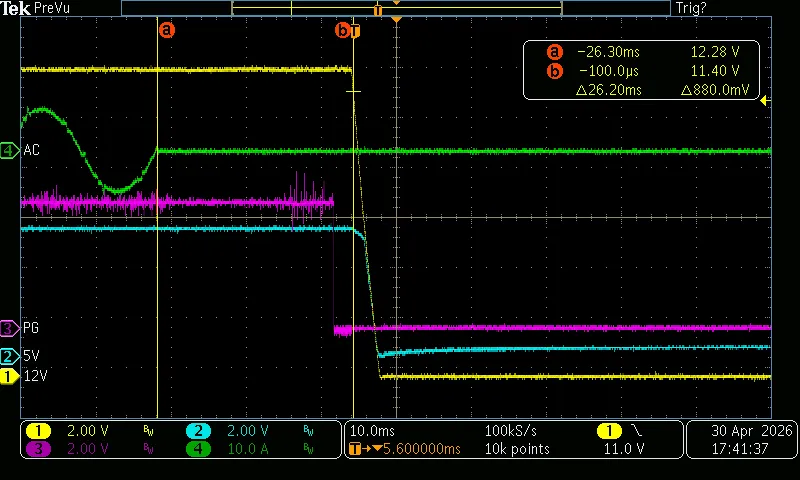

T5+T6 (Voltage Hold-up 80% 12V)
26.20 ms | SPEC > 17ms

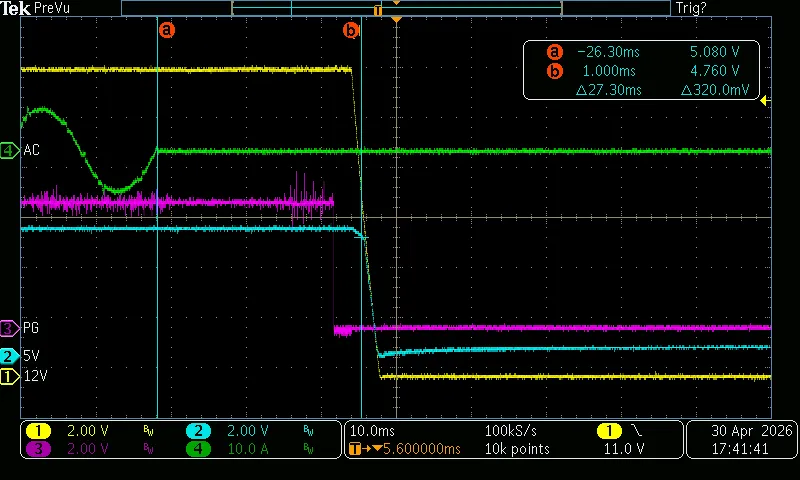

T5+T6 (Voltage Hold-up 80% 5V)
27.30 ms | SPEC > 17ms

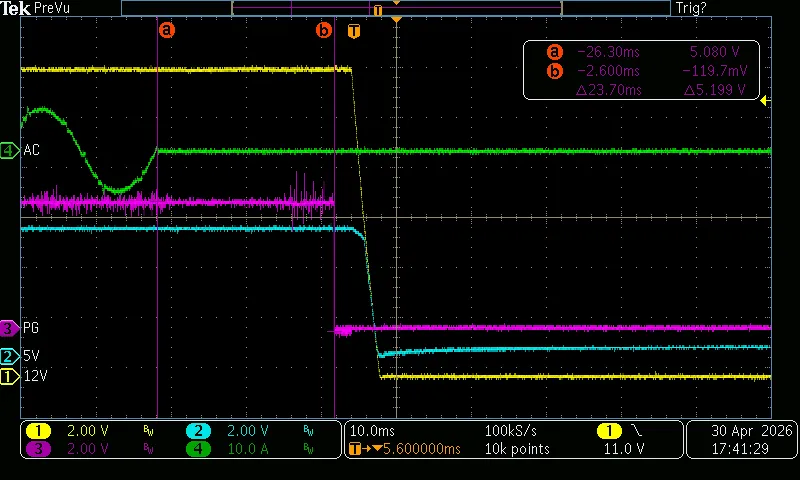

T5 (PWR_OK Hold-up 80% PG)
23.70 ms | SPEC > 16ms

100% 负载掉电保持时间

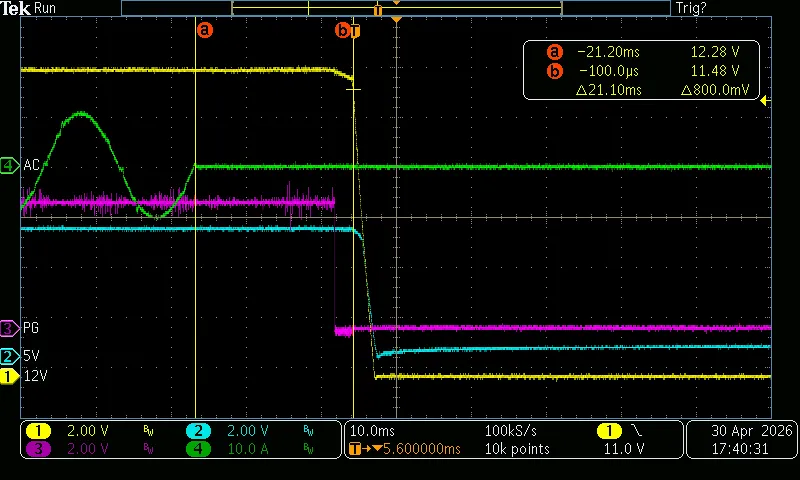

T5+T6 (Voltage Hold-up 100% 12V)
21.10 ms | SPEC > 12ms

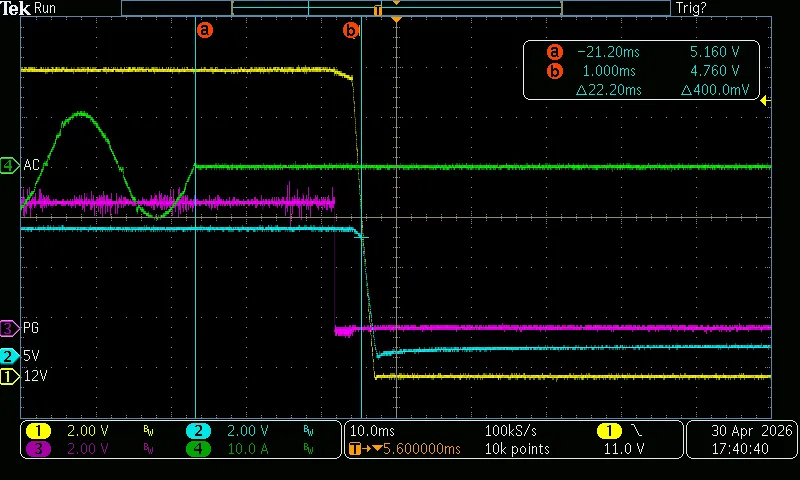

T5+T6 (Voltage Hold-up 100% 5V)
22.20 ms | SPEC > 12ms

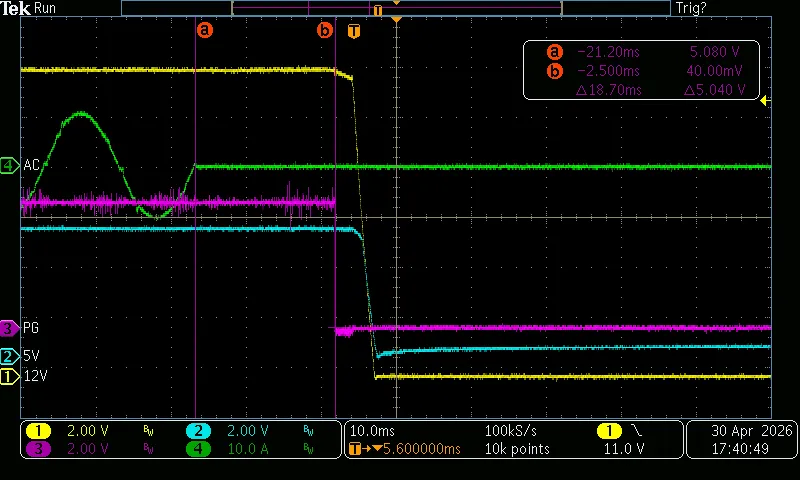

T5 (PWR_OK Hold-up 100% PG)
18.70 ms | SPEC > 11ms
