ATX 3.0 Power Excursion Test：威刚ADATA XPG FUSION 1600 TITANIUM FUSION1600T BKCEU

电源序列号：4031D0796534

模块状态（测试结果）：FAIL

ATX 3.0 问题摘要

高风险 0 项 | 中风险 3 项 | 低风险 0 项。当前按表格参考栏中的 12V 参考范围自动判定，并支持忽略/恢复交互。

已忽略问题（0）

ATX 3.0 Power Excursion 测试数据

负载条件	12V Min (V)	12V Max Load (A)	峰值输出功率 (W)	12V Max (V)	12V Min Load (A)	持续输出功率 (W)	12V 电压参考范围	结果
200% Peak, 5% Duty Cycle, 100us/1900us	11.920	259.03	3200.00	12.530	114.72	1468.26	Intel ATX 3.0 spec: 11.2 ~ 12.6V	PASS
180% Peak, 8% Duty Cycle, 1ms/11.5ms	9.762	232.37	2880.00	12.720	112.01	1435.74	Intel ATX 3.0 spec: 11.2 ~ 12.6V	FAIL
180% Peak, 8% Duty Cycle, 1ms/11.5ms	9.762	232.37	2880.00	12.720	112.01	1435.74	Intel ATX 3.0 spec: 11.2 ~ 12.6V	FAIL
160% Peak, 12.5% Duty Cycle, 10ms/70ms	12.050	205.70	2560.00	12.660	109.91	1410.49	Intel ATX 3.0 spec: 11.2 ~ 12.6V	FAIL
120% Peak, 25% Duty Cycle, 100ms/300ms	12.230	152.37	1920.00	12.450	115.54	1478.02	Intel ATX 3.0 spec: 11.2 ~ 12.6V	PASS
PCIe 12V-2x6 600W 3x Dynamic, 5% Duty Cycle, 100us/1900us ATX3.0-12V-2x6	11.540	259.03	3200.00	12.240	114.72	1468.26	Intel ATX 3.0 spec: 11.2 ~ 12.6V PCIe 5.0 spec: 11.04 ~ 12.6V	PASS

示波器截图

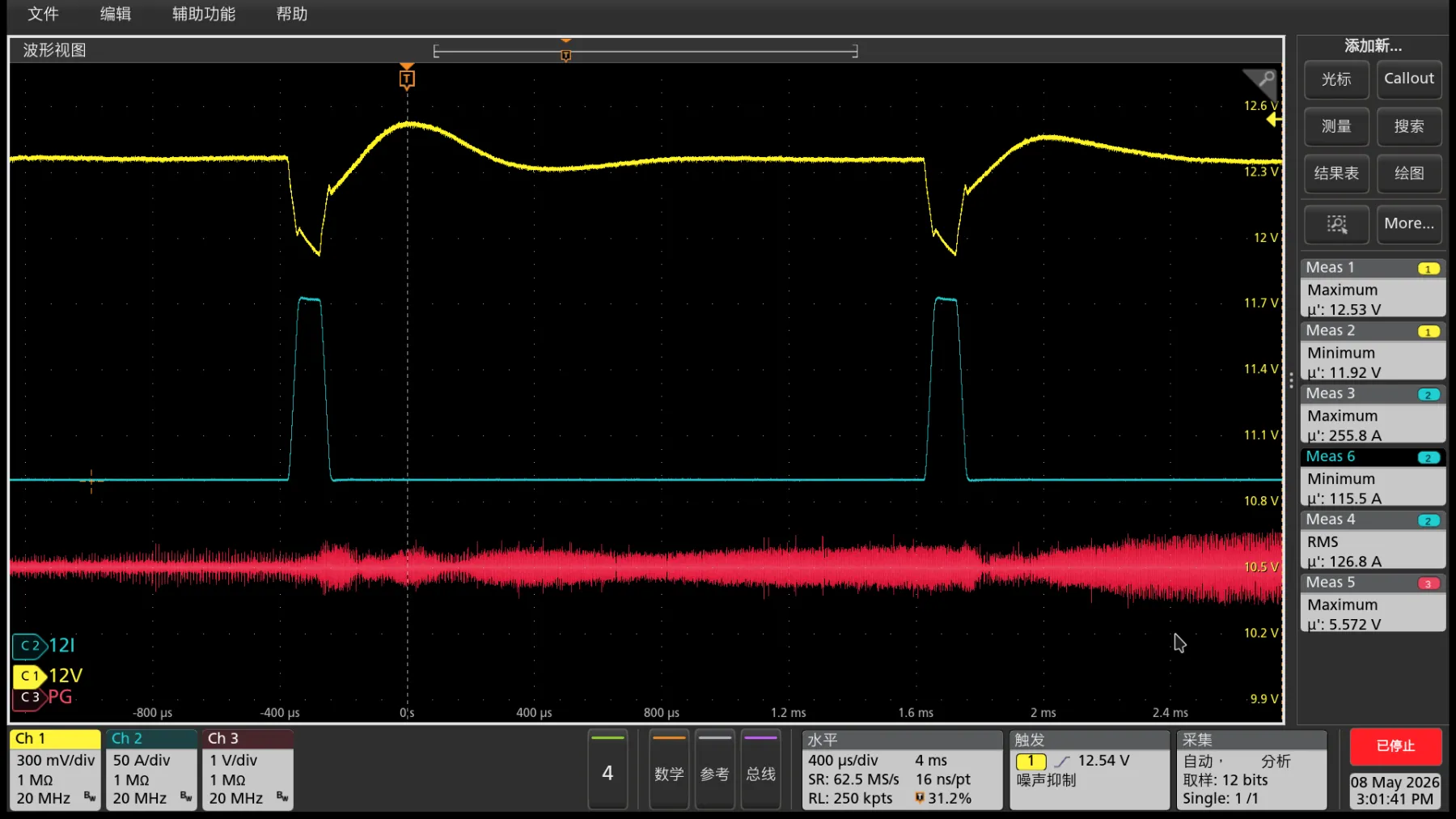

200% Peak,
5% Duty Cycle,
100us/1900us

12V Min 11.920V12V Max 12.530VPASS

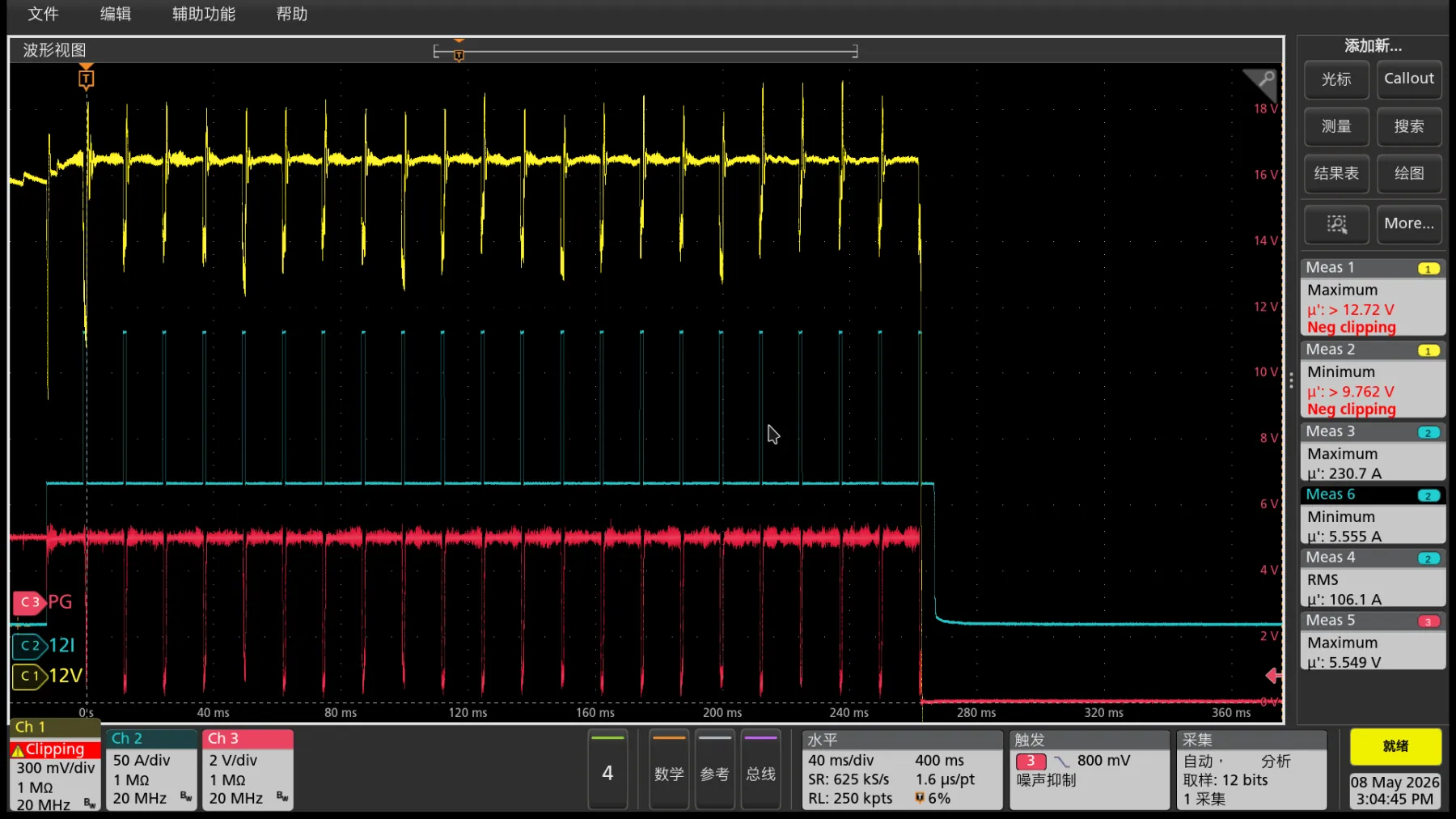

180% Peak,
8% Duty Cycle,
1ms/11.5ms

12V Min 9.762V12V Max 12.720VFAIL

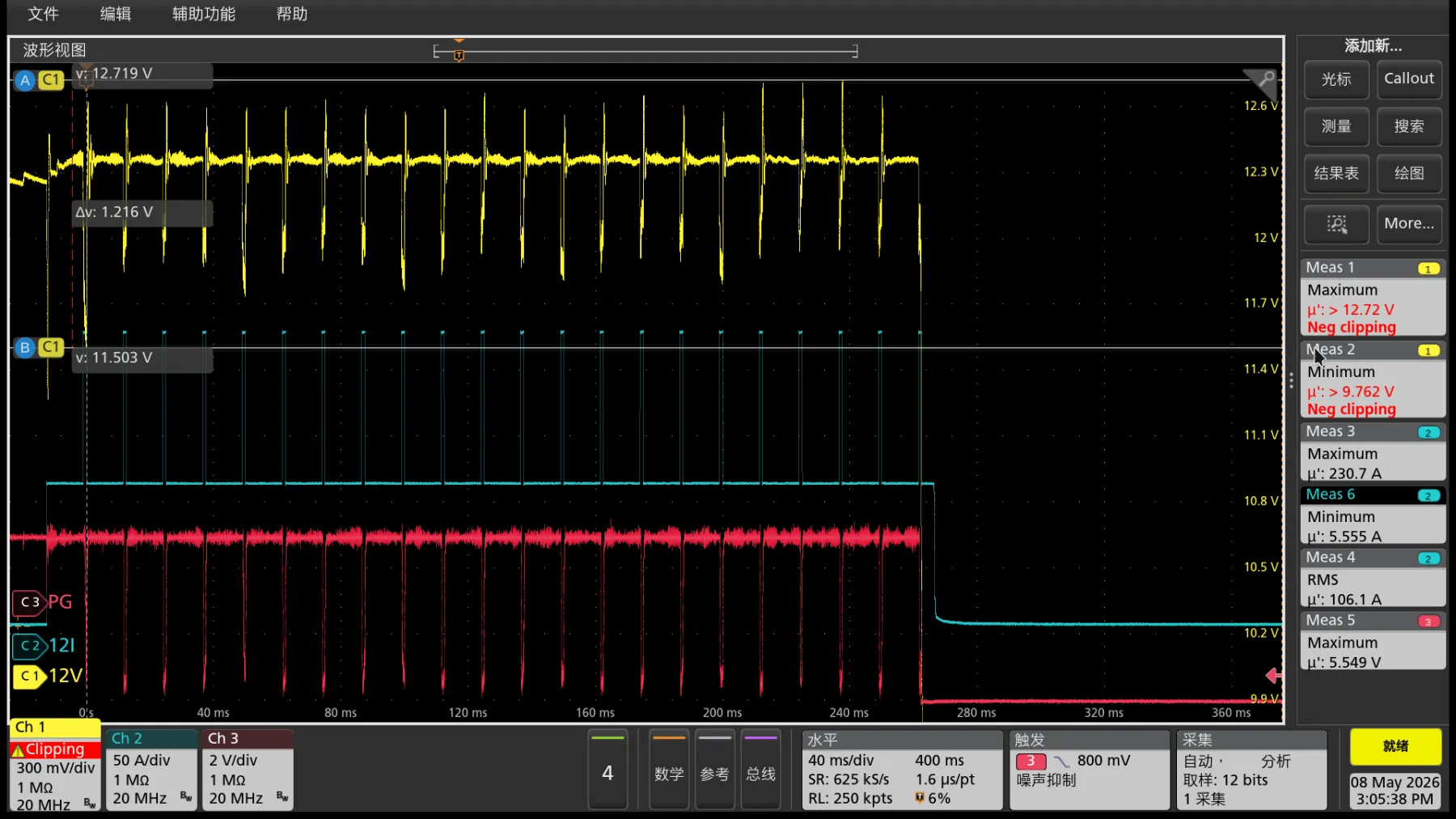

180% Peak,
8% Duty Cycle,
1ms/11.5ms

12V Min 9.762V12V Max 12.720VFAIL

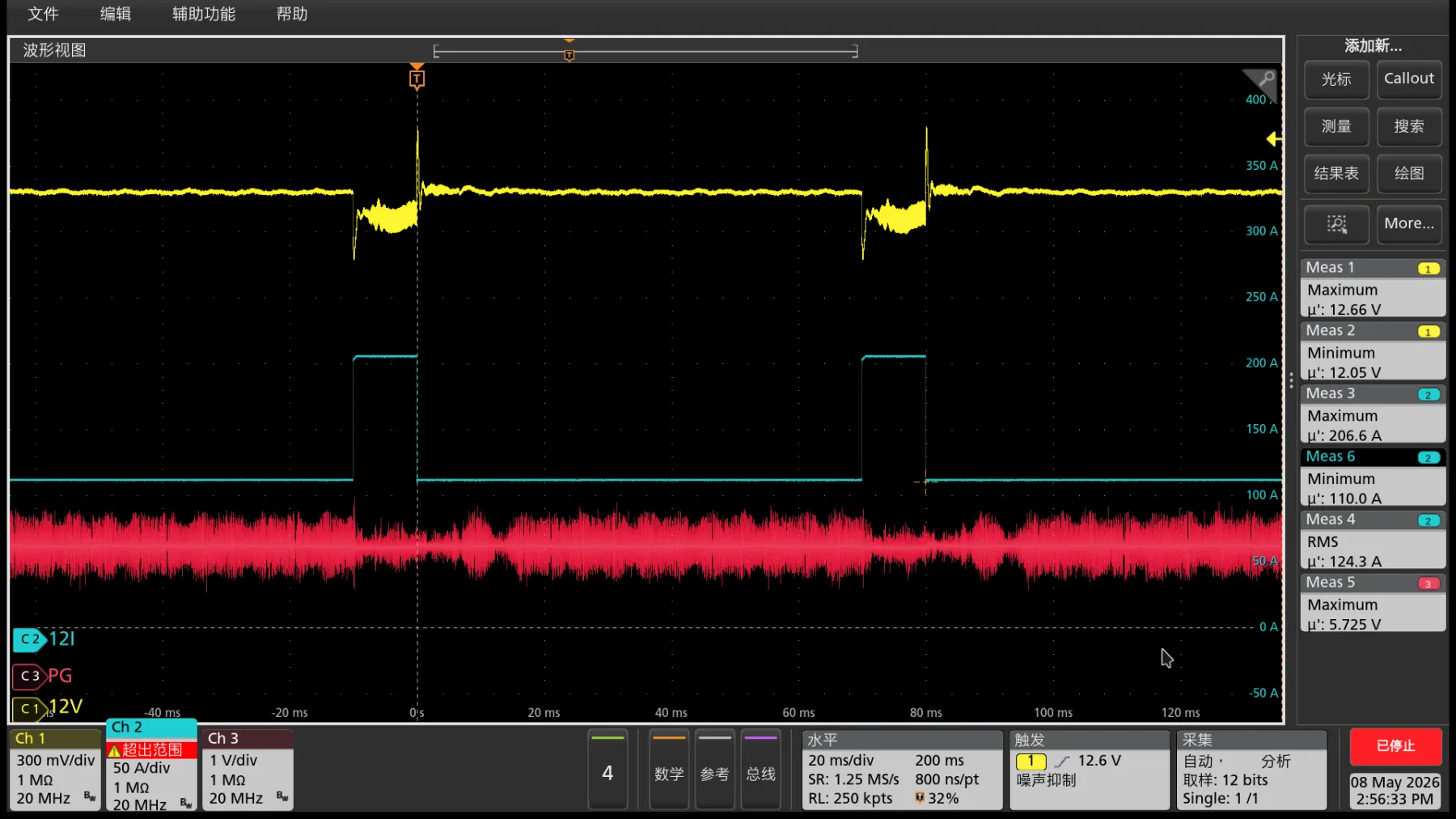

160% Peak,
12.5% Duty Cycle,
10ms/70ms

12V Min 12.050V12V Max 12.660VFAIL

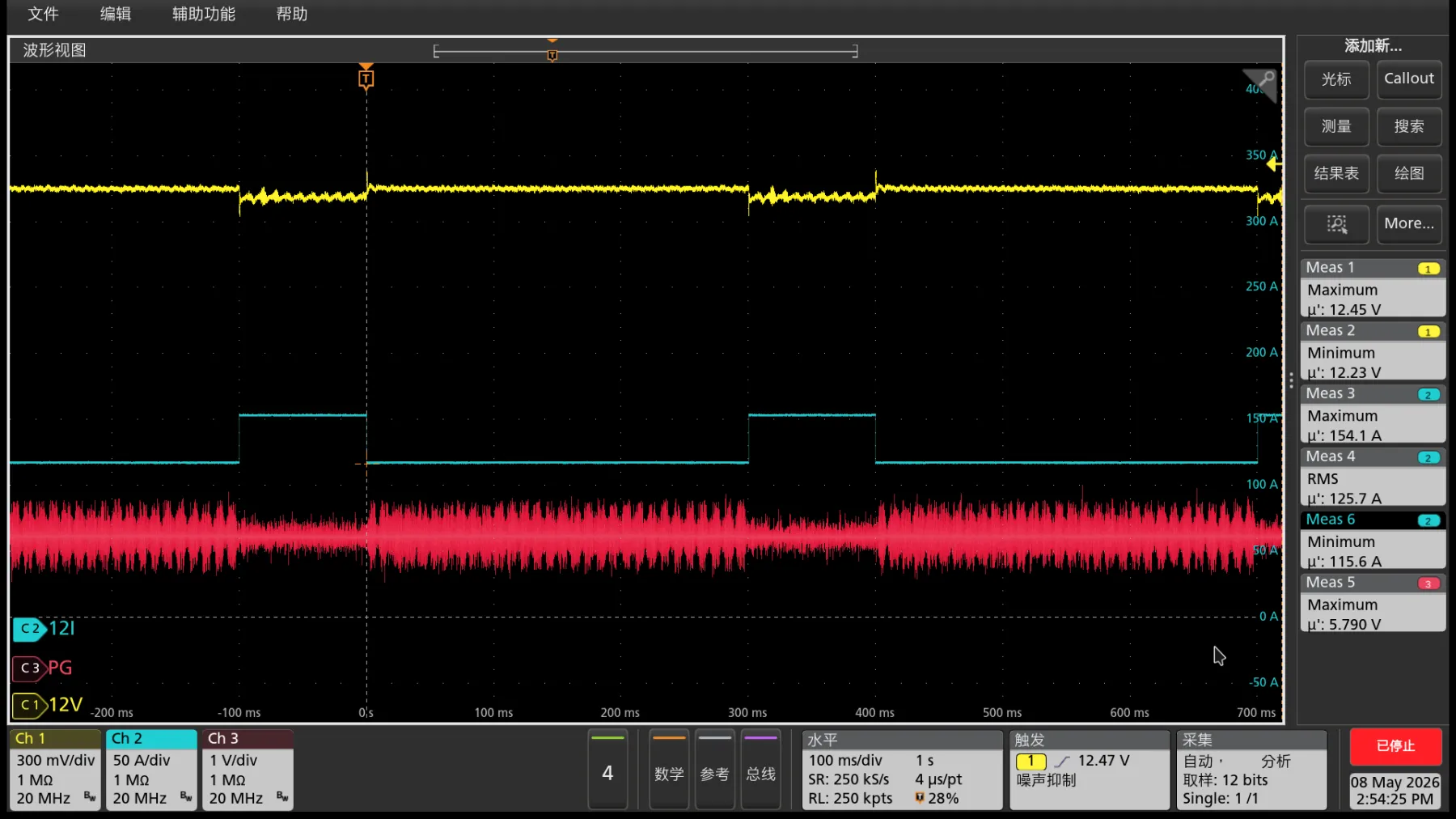

120% Peak,
25% Duty Cycle,
100ms/300ms

12V Min 12.230V12V Max 12.450VPASS

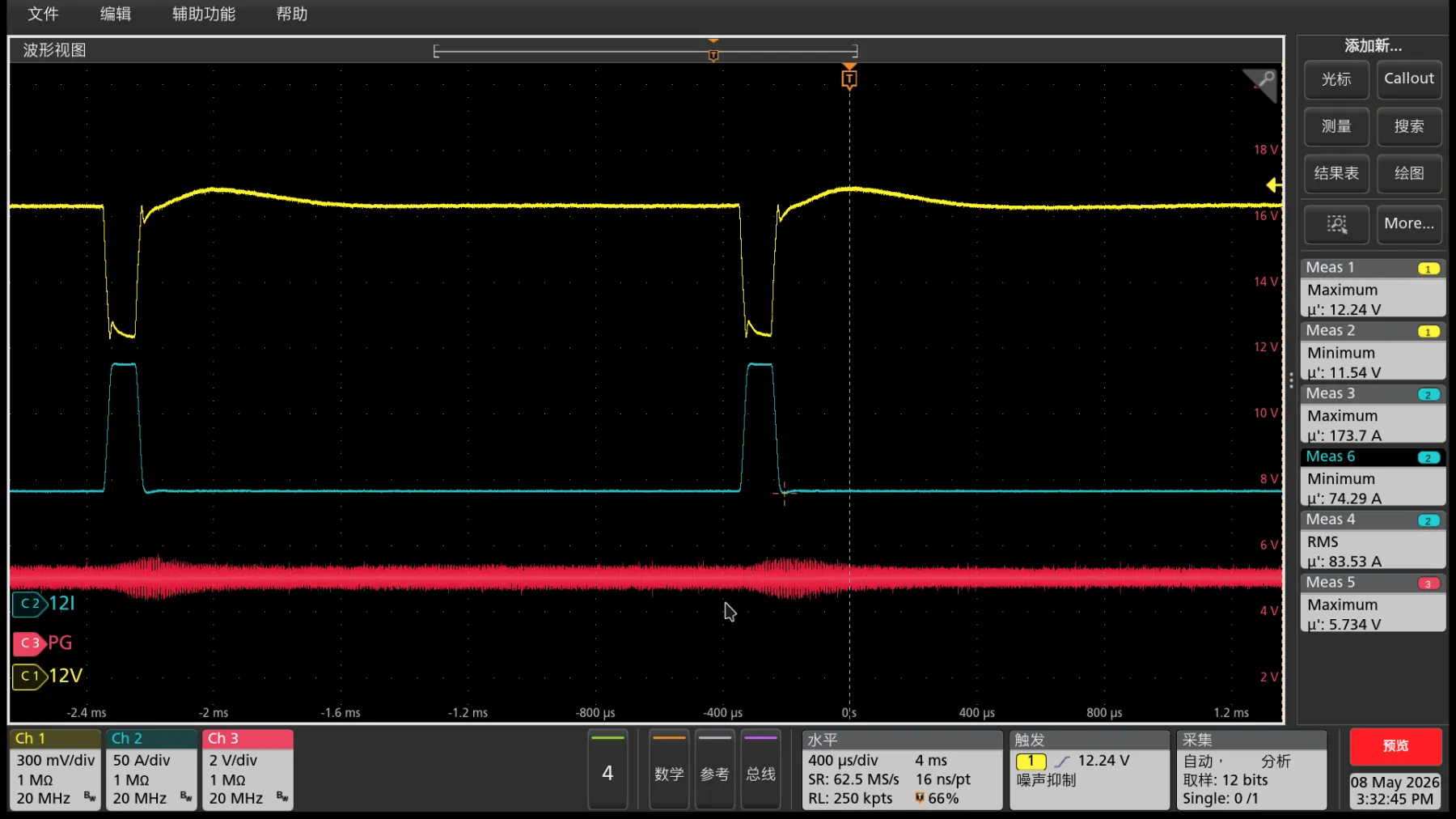

PCIe 12V-2x6
600W 3x Dynamic,
5% Duty Cycle,
100us/1900us
ATX3.0-12V-2x6

12V Min 11.540V12V Max 12.240VPASS
