ATX 3.0 Power Excursion Test：微星MSI MPG Ai1300TS PCIE5 MS 7ZPUB

电源序列号：3067ZPUB17CE010550000006

模块状态（测试结果）：PASS

ATX 3.0 Power Excursion 测试数据

负载条件	12V Min (V)	12V Max Load (A)	峰值输出功率 (W)	12V Max (V)	12V Min Load (A)	持续输出功率 (W)	12V 电压参考范围	结果
200% Peak, 5% Duty Cycle, 100us/1900us	11.800	192.32	2400.00	12.340	84.09	1101.20	Intel ATX 3.0 spec: 11.2 ~ 12.6V	PASS
180% Peak, 8% Duty Cycle, 1ms/11.5ms	11.850	172.32	2160.00	12.340	82.06	1076.81	Intel ATX 3.0 spec: 11.2 ~ 12.6V	PASS
160% Peak, 12.5% Duty Cycle, 10ms/70ms	11.900	152.32	1920.00	12.300	80.48	1057.87	Intel ATX 3.0 spec: 11.2 ~ 12.6V	PASS
120% Peak, 25% Duty Cycle, 100ms/300ms	12.030	112.32	1440.00	12.210	84.70	1108.51	Intel ATX 3.0 spec: 11.2 ~ 12.6V	PASS
PCIe 12V-2x6 600W 3x Dynamic, 5% Duty Cycle, 100us/1900us ATX3.0-12V-2x6	11.430	192.32	2400.00	12.140	84.09	1101.20	Intel ATX 3.0 spec: 11.2 ~ 12.6V PCIe 5.0 spec: 11.04 ~ 12.6V	PASS

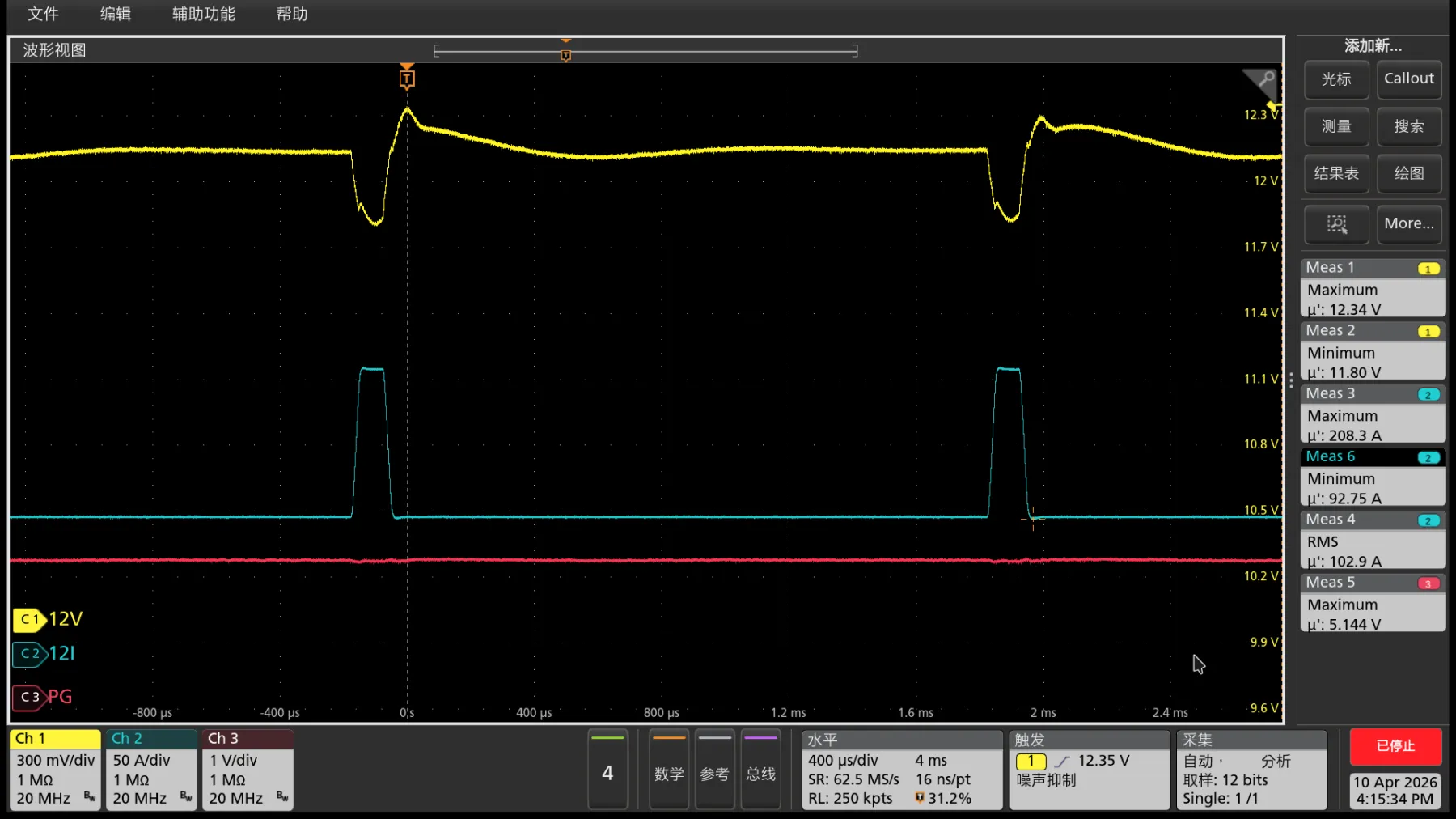

200% Peak,
5% Duty Cycle,
100us/1900us

12V Min 11.800V12V Max 12.340VPASS

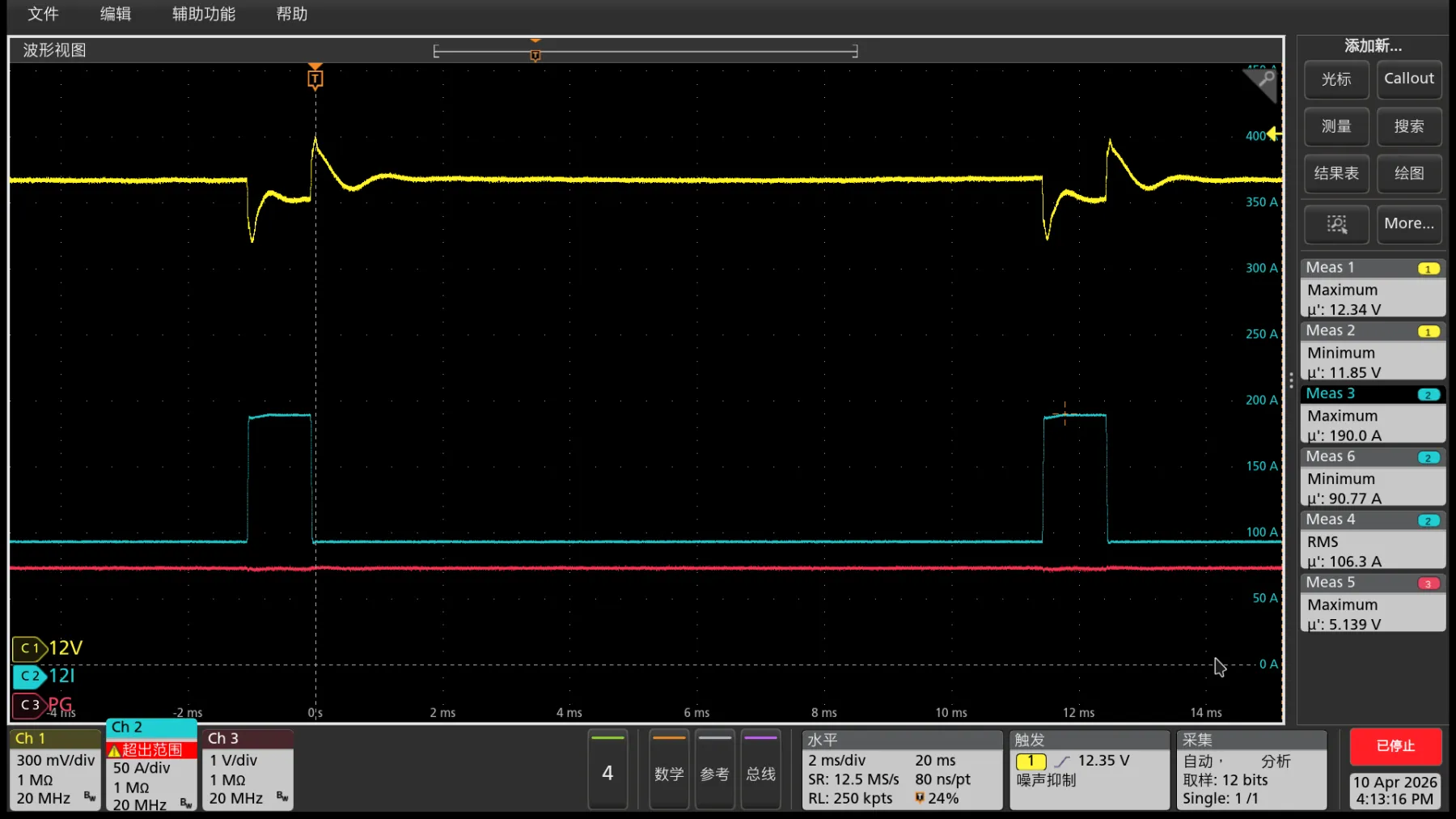

180% Peak,
8% Duty Cycle,
1ms/11.5ms

12V Min 11.850V12V Max 12.340VPASS

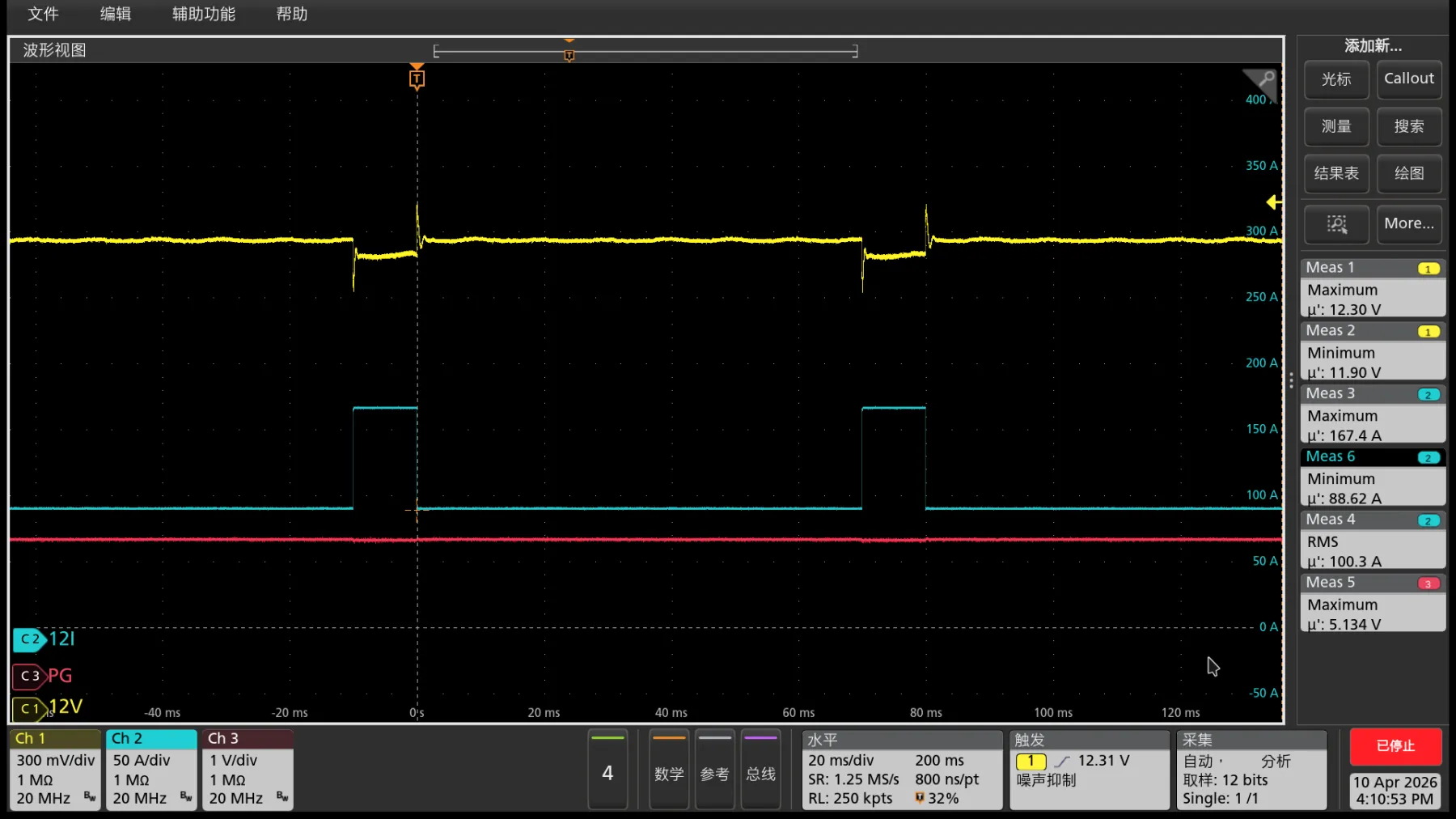

160% Peak,
12.5% Duty Cycle,
10ms/70ms

12V Min 11.900V12V Max 12.300VPASS

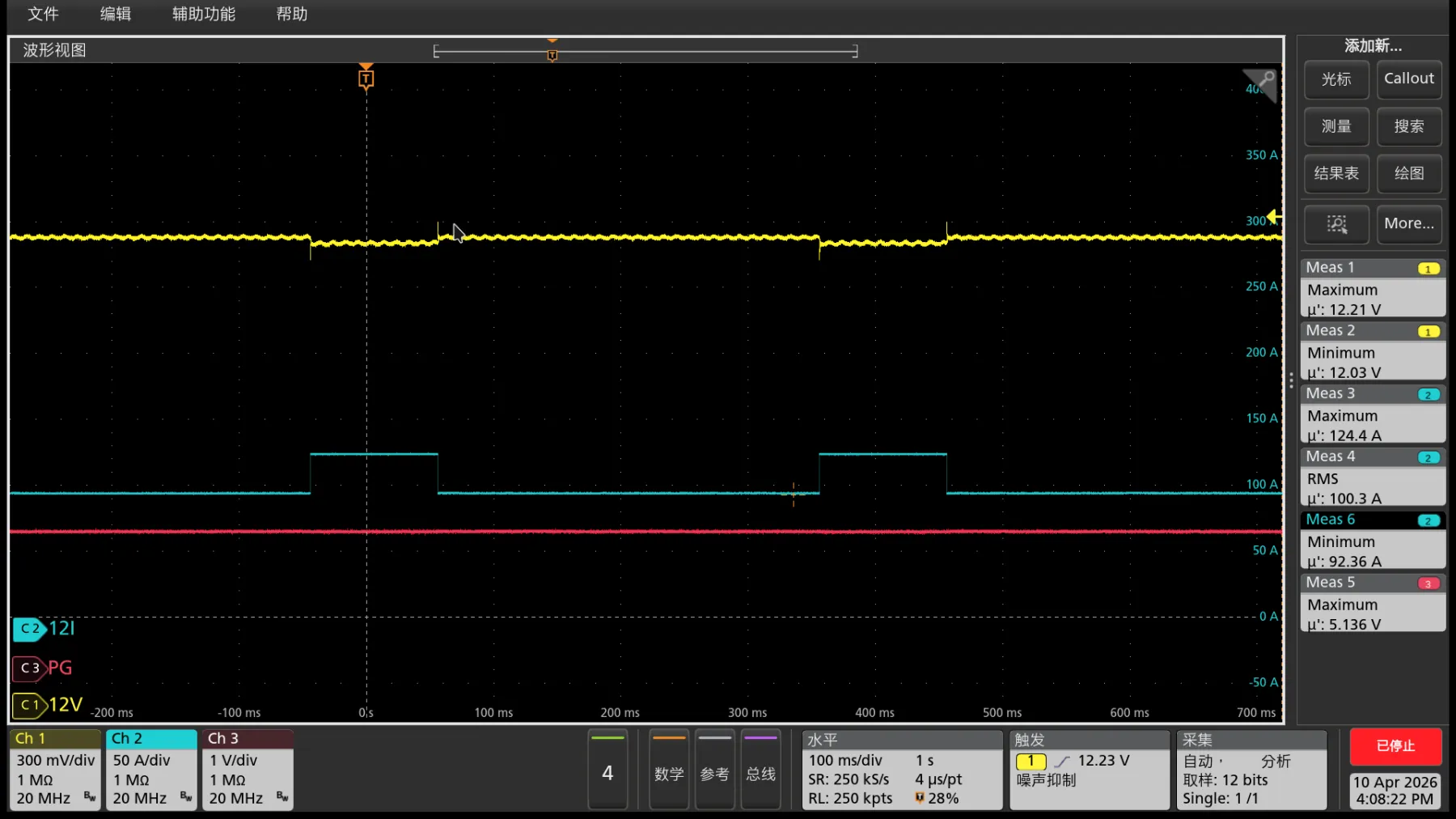

120% Peak,
25% Duty Cycle,
100ms/300ms

12V Min 12.030V12V Max 12.210VPASS

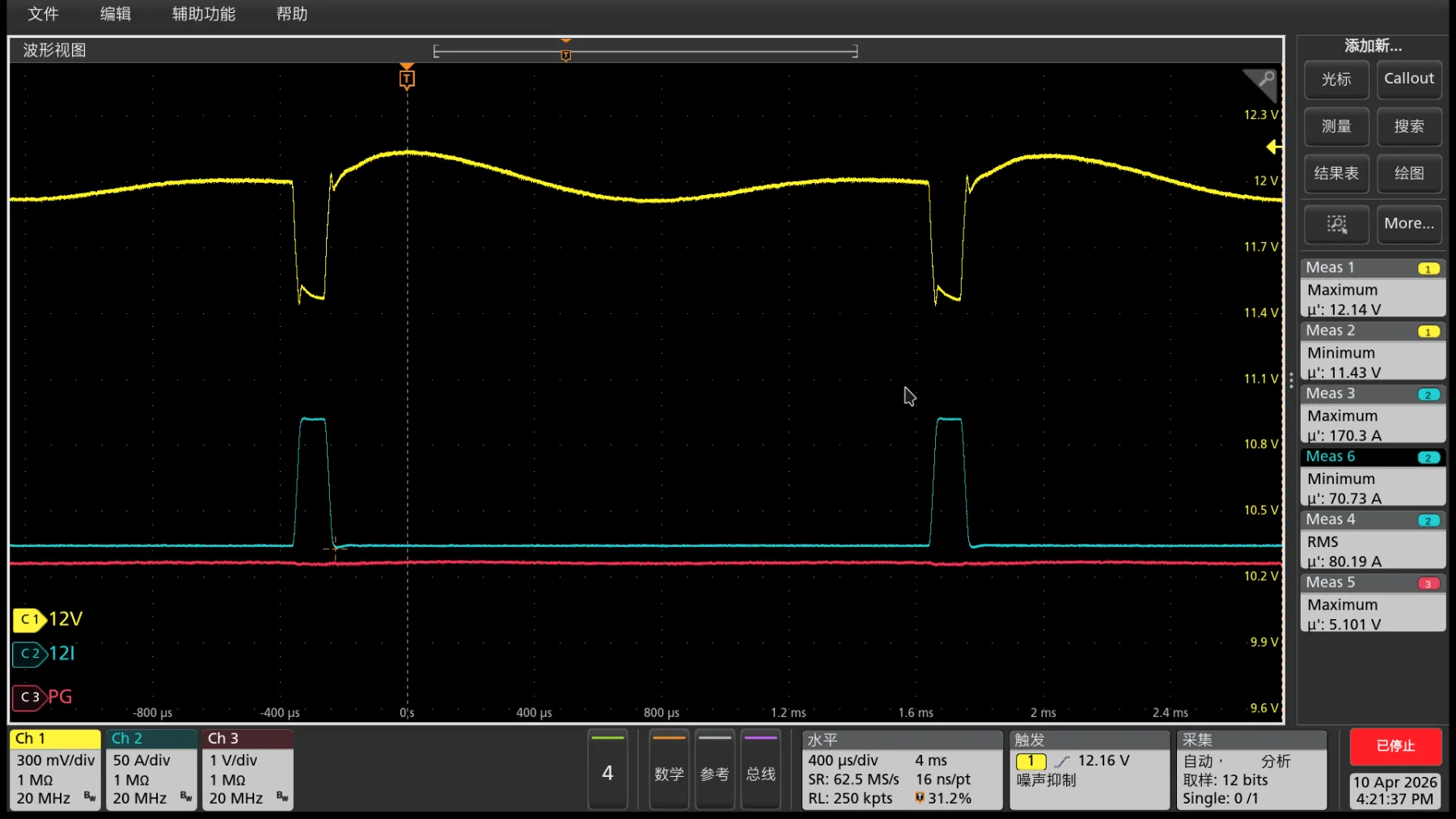

PCIe 12V-2x6
600W 3x Dynamic,
5% Duty Cycle,
100us/1900us
ATX3.0-12V-2x6

12V Min 11.430V12V Max 12.140VPASS
