ATX 3.0 Power Excursion Test：长城GreatWall SPARK S8 850W

电源序列号：2P114146858

模块状态（测试结果）：FAIL

ATX 3.0 问题摘要

高风险 0 项 | 中风险 1 项 | 低风险 0 项。当前按表格参考栏中的 12V 参考范围自动判定，并支持忽略/恢复交互。

已忽略问题（0）

负载条件	12V Min (V)	12V Max Load (A)	峰值输出功率 (W)	12V Max (V)	12V Min Load (A)	持续输出功率 (W)	12V 电压参考范围	结果
200% Peak, 5% Duty Cycle, 100us/1900us	11.670	135.58	1700.00	12.220	58.92	780.01	Intel ATX 3.0 spec: 11.2 ~ 12.6V	PASS
180% Peak, 8% Duty Cycle, 1ms/11.5ms	11.690	121.42	1530.00	12.450	57.48	762.74	Intel ATX 3.0 spec: 11.2 ~ 12.6V	PASS
160% Peak, 12.5% Duty Cycle, 10ms/70ms	11.750	107.25	1360.00	12.860	56.36	749.32	Intel ATX 3.0 spec: 11.2 ~ 12.6V	FAIL
120% Peak, 25% Duty Cycle, 100ms/300ms	11.990	78.92	1020.00	12.190	59.35	785.20	Intel ATX 3.0 spec: 11.2 ~ 12.6V	PASS
PCIe 12V-2x6 600W 3x Dynamic, 5% Duty Cycle, 100us/1900us ATX3.0-12V-2x6	11.690	135.58	1700.00	12.170	58.92	780.01	Intel ATX 3.0 spec: 11.2 ~ 12.6V PCIe 5.0 spec: 11.04 ~ 12.6V	PASS

200% Peak,
5% Duty Cycle,
100us/1900us

12V Min 11.670V12V Max 12.220VPASS

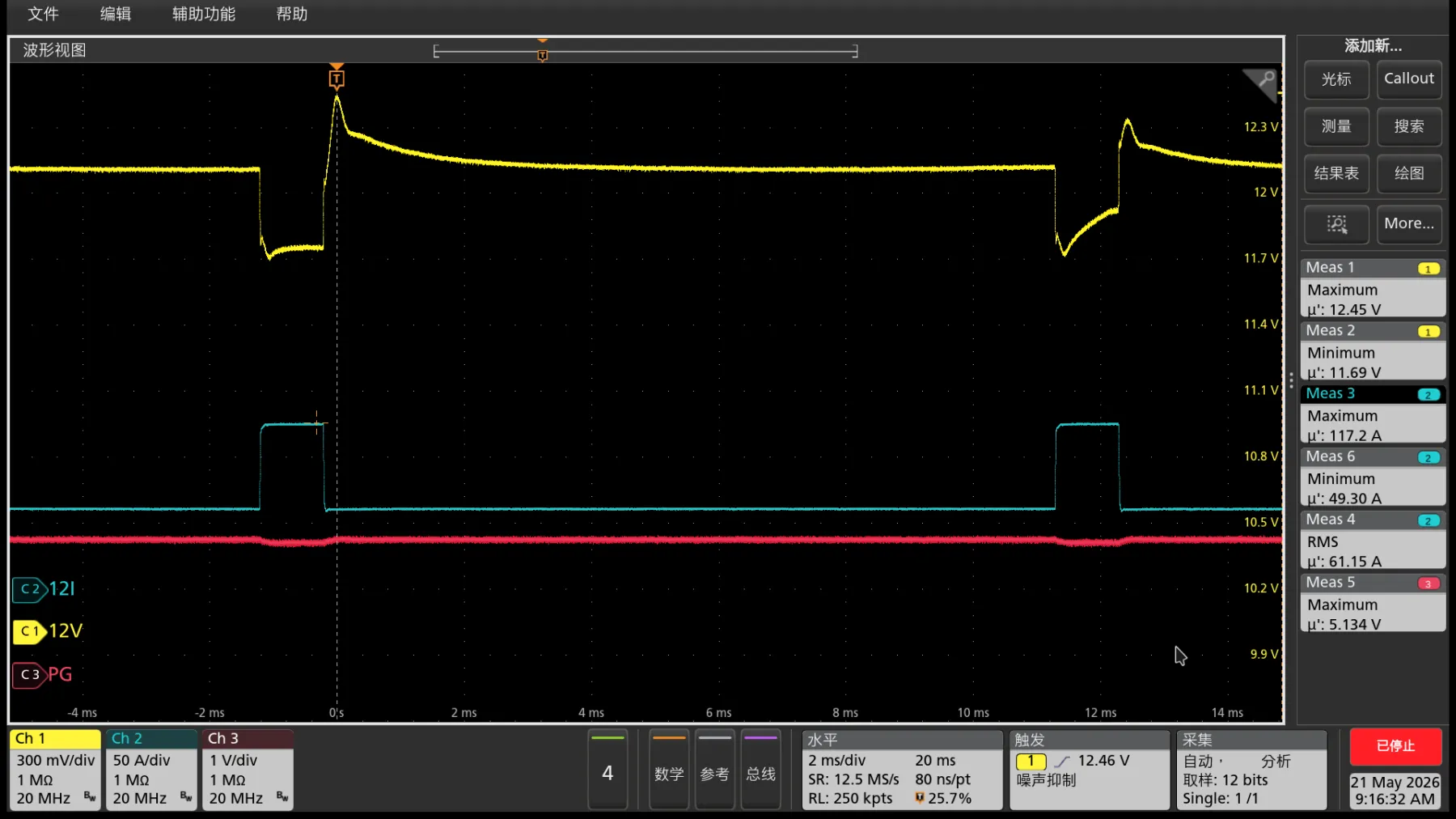

180% Peak,
8% Duty Cycle,
1ms/11.5ms

12V Min 11.690V12V Max 12.450VPASS

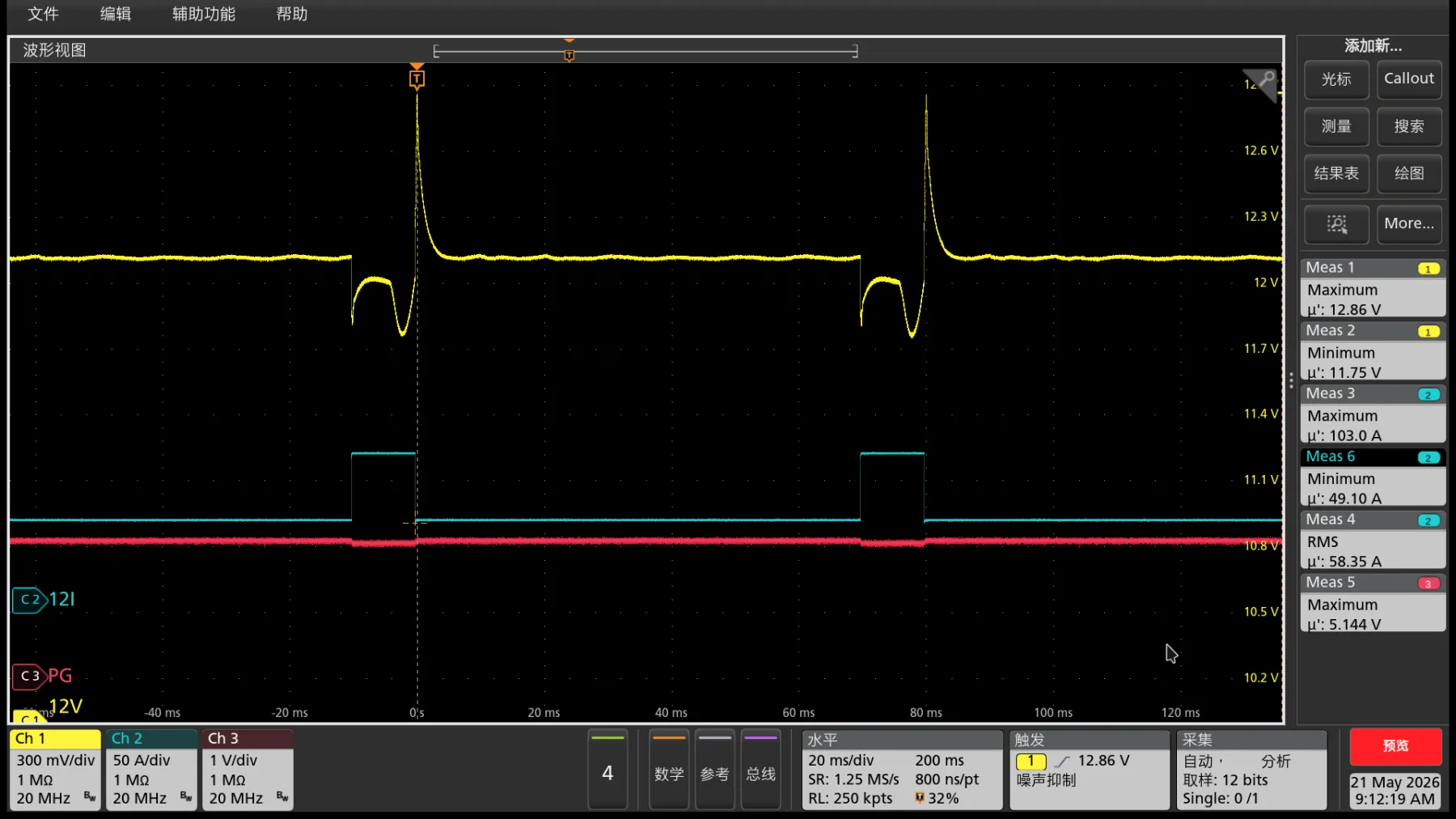

160% Peak,
12.5% Duty Cycle,
10ms/70ms

12V Min 11.750V12V Max 12.860VFAIL

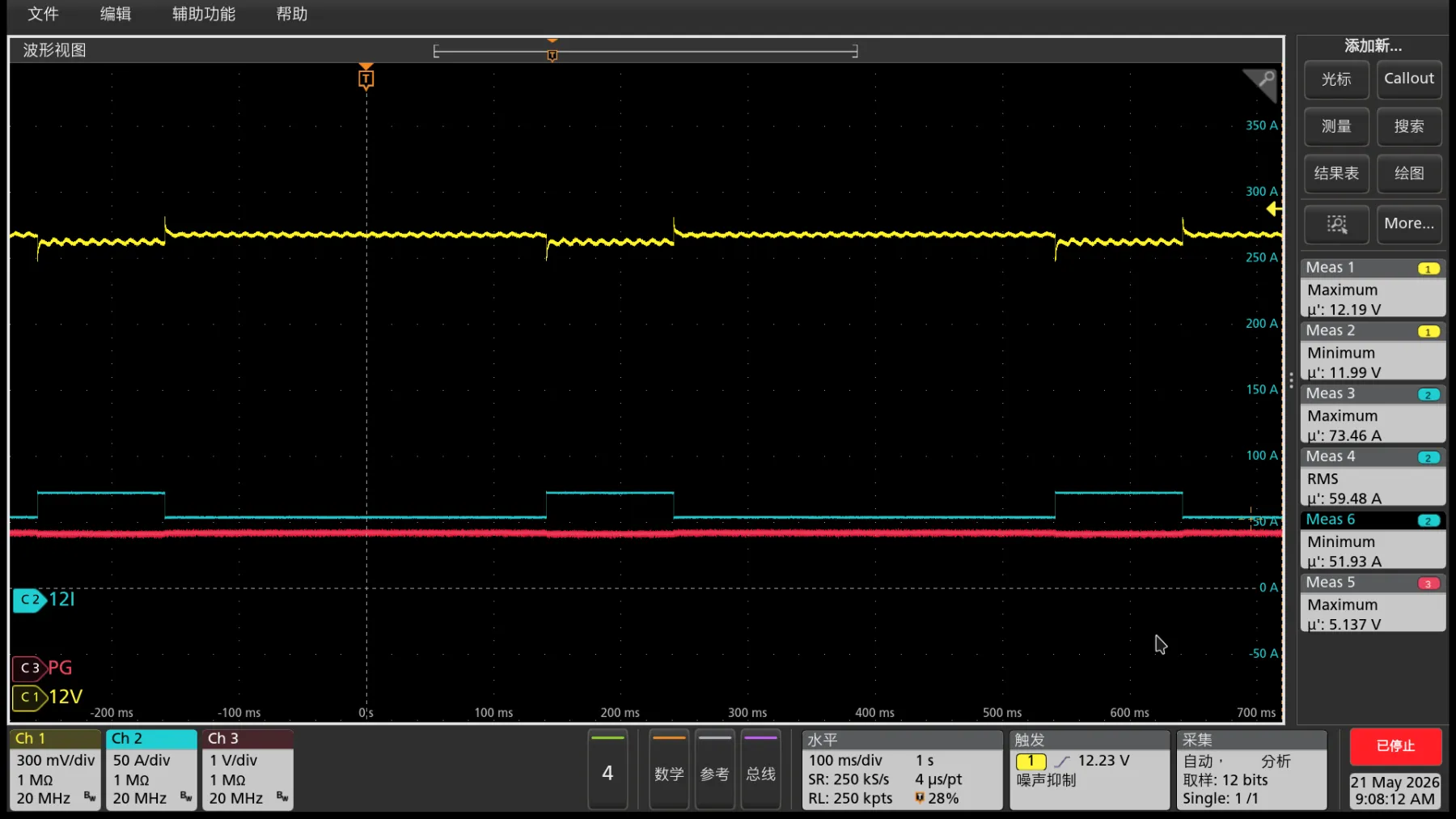

120% Peak,
25% Duty Cycle,
100ms/300ms

12V Min 11.990V12V Max 12.190VPASS

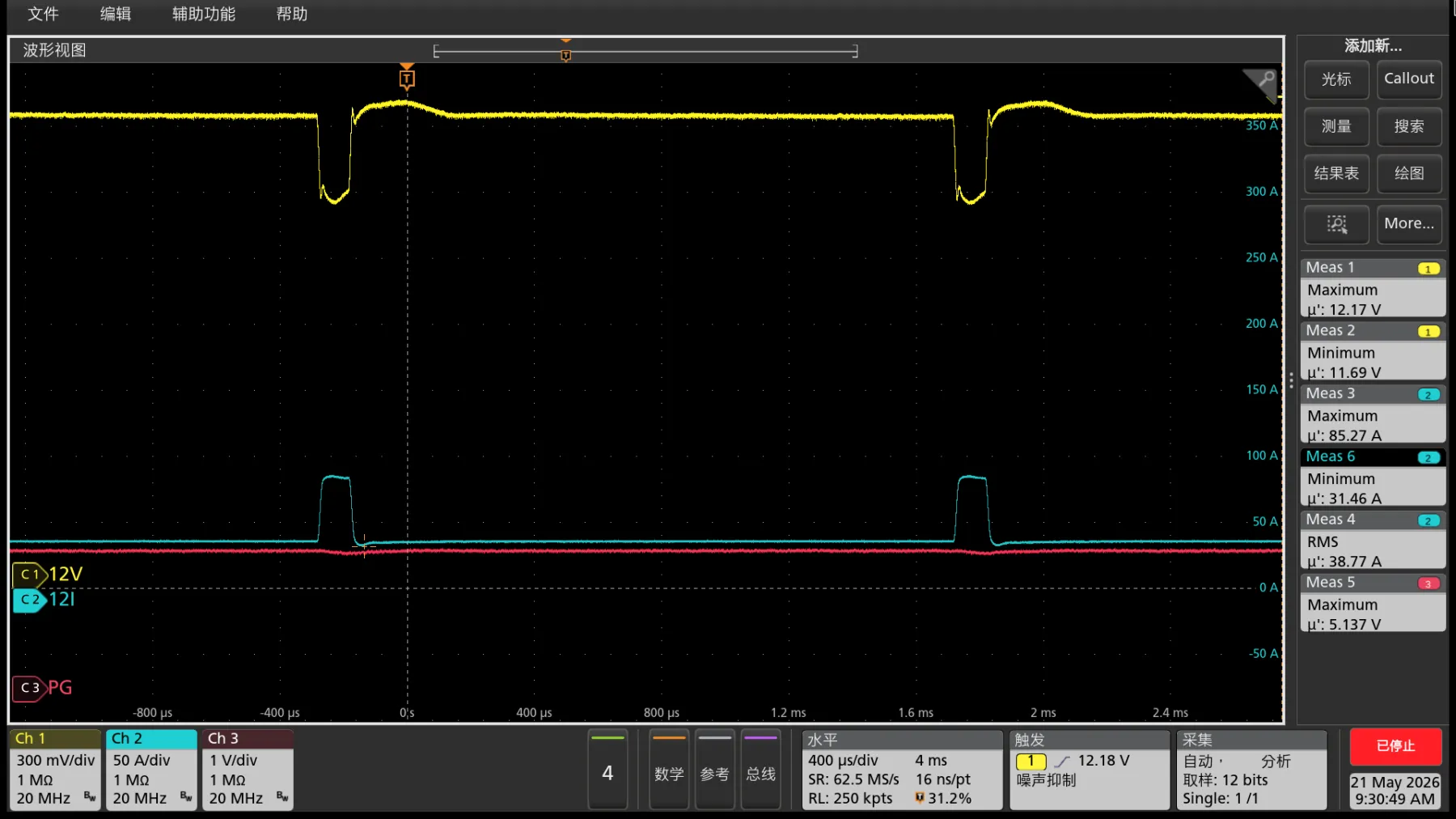

PCIe 12V-2x6
600W 3x Dynamic,
5% Duty Cycle,
100us/1900us
ATX3.0-12V-2x6

12V Min 11.690V12V Max 12.170VPASS
